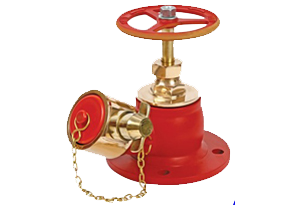

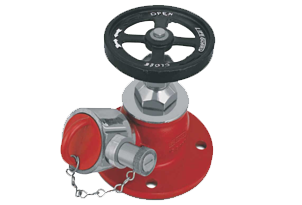

Hydrant Valve

Hydrant Valves are manufactured to suit various requirements,
BIS has accepted standard size of 63mm female inst. size as per IS:5290.

Size: 63mm / 50mm / 38mm

Material: Gun Metal / Stainless Steel / Aluminum

Inlet: 75mm NB Flanged as per IS:1538 / As per ANSI B 16.5 150 Class

Outlet: Standard 63mm Female Instantaneous

Test Pressure: 23kgf/cm2

RRL & Couplings

HOSE PIPE (RRL)

Size: 63mm

Length: 30 mtrs/15 mtrs/7.5 mtrs length

RRL IS 636 Type-A: Premium Quality Reinforced Rubber Line Fire Hose, Circular Woven Jacket made from 100% Synthetic Yarn, Heat and Abrasion Resistance.

RRL IS 636 Type-B: Internally Rubber lining combined with closely woven Polyester Fiber, Wrap made of multiply high tenacity fibers, Good Chemical resistance and protection against ageing, Smooth inner lining surface and very low friction loss.

Controlled Percolated IS: 8423: Controlled Percolating hoses made from synthetic yarn for more strength.

COUPLINGS:

Material: Gun Metal / Stainless Steel / Aluminium

Approval: ISI

Hydro Test Pressure:21 kgf/cm2

Branch Pipe & Nozzles

Size: Generally, 63mm Male Instantaneous / Screwed

Material : Gun Metal / Stainless Steel / Aluminum Alloy

Working Pressure: 7 kgf/cm2

Light Weight / Easy Handlings

Long Range Jet and Fog Pattern

Option of Fixed / Spinning Teeth

Select Flow Facility

Sturdy Nozzle

Hose Box

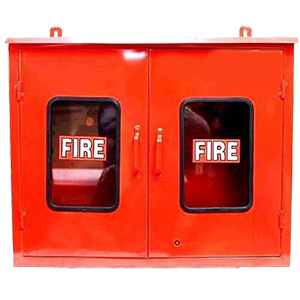

M.S. DOUBLE DOOR FIRE HOSE CABINET

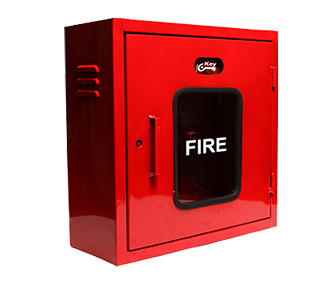

M.S. SINGLE DOOR FIRE HOSE CABINET

FRP DOUBLE DOOR FIRE HOSE CABINET

FRP SINGLE DOOR FIRE HOSE CABINET

Application: Hose Boxes fabricated from M.S/SS/FRP for storage of Fire Hoses and nozzles. Single and Double Hose Boxes available.

Material of construction: MS. Sheet 16 to 18 SWG/SS304 sheet 18 SWG/FRP

Brief Description: Single Hose Box: for accommodating 1 No. 15 Mtr Hose / 1 No.7.5 Mtr Hose and one nozzle.

Approximate size: 450mm x 600mm x 250mm (for IS: 636. Type B hose, the recommended size is 600mm x 600mm x 250 mm)

Double Hose Box: For accommodating 2 No. 15 Mtr Hoses and one nozzle. Approximate size 750mm x 600mmx 250mm (for IS: 636, Type B hose, the recommended size is 900mm x 600mm x 250 mm)
